Jobsheet8 ''Static Routing bagian 3''(Model 6 router)

Nama : Oryza Fathoni	''Static Routing  bagian 3''(Model 6 router)	Tanggal : 20-11-2014
Kelas : XII TKJ 1		SK/KD :
No.Jobsheet : 8		Guru Produktif : Maman Hariana

I. TUJUAN

     Mengkonfigurasi static routing dengan 6 buah router (bagian 3)

II. PENDAHULUAN

      Dibawah ini saya akan melakukan konfigurasi static routing 6 router

III.ALAT DAN BAHAN

       Laptop, Virtualbox,  Mikrotik 5.20 & GNS3

IV.  LANGKAH KERJA

        Membuat topologi di GNS3 lalu jalankan

Konfigurasi mikrotik 1

  LOGIN

Mengganti nama router

  [admin@mikrotik] > system identity set name=R1

Memberi nama interface

  [admin@R1] > interface set 0 name=to-lan

  [admin@R1] > interface set 1 name=to-R2

  [admin@R1] > interface set 2 name=to-R4
  [admin@R1] > interface print

Ip address

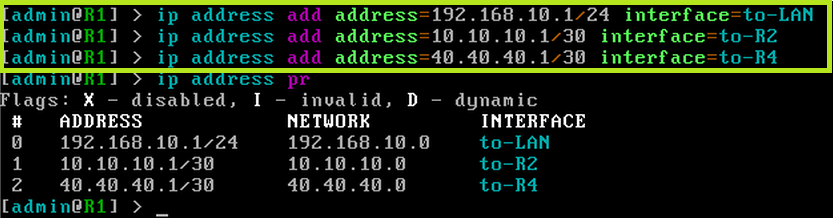

  [admin@R1] > ip address add address=192.168.10.1/24 interface=to-lan

  [admin@R1] > ip address add address=10.10.10.1/30 interface=to-R2

  [admin@R1] > ip address add address=40.40.40.1/30 interface=to-R4

  [admin@R1] > ip address pr

Ip routing

  [admin@R1] > ip route add dst-address=192.168.20.0/24 gateway=10.10.10.2

  [admin@R1] > ip route add dst-address=20.20.20.0/30 gateway=10.10.10.2

  [admin@R1] > ip route add dst-address=192.168.30.0/24 gateway=10.10.10.2

  [admin@R1] > ip route add dst-address=30.30.30.0/30 gateway=10.10.10.2

  [admin@R1] > ip route add dst-address=192.168.60.0/24 gateway=10.10.10.2

  [admin@R1] > ip route add dst-address=192.168.40.0/24 gateway=40.40.40.2

  [admin@R1] > ip route add dst-address=50.50.50.0/30 gateway=40.40.40.2

  [admin@R1] > ip route add dst-address=192.168.50.0/24 gateway=40.40.40.2

  [admin@R1] > ip route add dst-address=60.60.60.0/30 gateway=40.40.40.2

  [admin@R1] > ip route add dst-address=192.168.60.0/24 gateway=40.40.40.2

  [admin@R1] > ip route pr

Konfigurasi mikrotik 2
  LOGIN

Mengganti nama router

  [admin@mikrotik] > system identity set name=R2

Interface

  [admin@R2] > interface set 0 name=to-lan

  [admin@R2] > interface set 1 name=to-R1

  [admin@R2] > interface set 2 name=to-R3
  [admin@R2] > interface pr

Ip address

  [admin@R2] > ip address add address=192.168.20.1/24 inteface=to-lan

  [admin@R2] > ip address add address=10.10.10.2/30 inteface=to-R1

  [admin@R2] > ip address add address=20.20.20.1/30 inteface=to-R3
  [admin@R2] > ip address pr

Ip routing
  [admin@R2] > ip route add dst-address=192.168.10.0/24 gateway=10.10.10.1
  [admin@R2] > ip route add dst-address=40.40.40.0/30 gateway=10.10.10.1
  [admin@R2] > ip route add dst-address=192.168.40.0/24 gateway=10.10.10.1
  [admin@R2] > ip route add dst-address=50.50.50.0/30 gateway=10.10.10.1
  [admin@R2] > ip route add dst-address=192.168.50.0/24 gateway=10.10.10.1
  [admin@R2] > ip route add dst-address=192.168.30.0/24 gateway=20.20.20.2

  [admin@R2] > ip route add dst-address=30.30.30.0/30 gateway=20.20.20.2

  [admin@R2] > ip route add dst-address=192.168.60.0/24 gateway=20.20.20.2

  [admin@R2] > ip route add dst-address=60.60.60.0/30 gateway=20.20.20.2

  [admin@R2] > ip route add dst-address=192.168.50.0/24 gateway=20.20.20.2
  [admin@R2] > ip route pr

Konfigurasi mikrotik 3
  LOGIN

Mengganti nama router

  [admin@mikrotik] > system identity set name=R3

Interface

  [admin@R3] > interface set 0 name=to-lan

  [admin@R3] > interface set 1 name=to-R6

  [admin@R3] > interface set 2 name=to-R2
  [admin@R3] > interface pr

Ip address

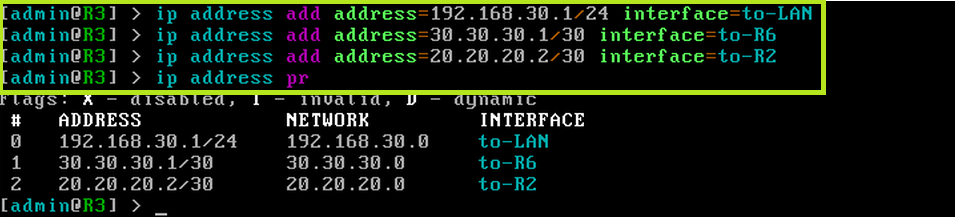

  [admin@R3] > ip address add address=192.168.30.1/24 interface=to-lan

  [admin@R3] > ip address add address=30.30.30.1/30 interface=to-R6

  [admin@R3] > ip address add address=20.20.20.2/30 interface=to-R2
  [admin@R3] > ip address pr

Ip routing

  [admin@R3] > ip route add dst-address=10.10.10.0/30 gateway=20.20.20.1

  [admin@R3] > ip route add dst-address=40.40.40.0/30 gateway=20.20.20.1

  [admin@R3] > ip route add dst-address=50.50.50.0/30 gateway=30.30.30.2

  [admin@R3] > ip route add dst-address=60.60.60.0/30 gateway=30.30.30.2

  [admin@R3] > ip route add dst-address=192.168.10.0/24 gateway=20.20.20.1

  [admin@R3] > ip route add dst-address=192.168.20.0/24 gateway=20.20.20.1

  [admin@R3] > ip route add dst-address=192.168.40.0/24 gateway=30.30.30.2

  [admin@R3] > ip route add dst-address=192.168.50.0/24 gateway=30.30.30.2

  [admin@R3] > ip route add dst-address=192.168.60.0/24 gateway=30.30.30.2
  [admin@R3] > ip route pr

Konfigurasi mikrotik 4
  LOGIN

Mengganti nama router

  [admin@mikrotik] > system identity set name=R4

Interface

  [admin@R4] > interface set 0 name=to-lan

  [admin@R4] > interface set 1 name=to-R5

  [admin@R4] > interface set 2 name=to-R1
  [admin@R4] > interface pr

Ip address

  [admin@R4] > ip address add address=192.168.40.1/24 interface=to-lan

  [admin@R4] > ip address add address=50.50.50.1/30 interface=to-R5

  [admin@R4] > ip address add address=40.40.40.2/30 interface=to-R1
  [admin@R4] > ip address pr

Ip routing
  [admin@R4] > ip route add dst-address=192.168.50.0/24 gateway=50.50.50.2
  [admin@R4] > ip route add dst-address=60.60.60.0/30 gateway=50.50.50.2
  [admin@R4] > ip route add dst-address=192.168.60.0/24 gateway=50.50.50.2
  [admin@R4] > ip route add dst-address=30.30.30.0/30 gateway=50.50.50.2
  [admin@R4] > ip route add dst-address=192.168.30.0/24 gateway=50.50.50.2
  [admin@R4] > ip route add dst-address=192.168.10.0/24 gateway=40.40.40.1
  [admin@R4] > ip route add dst-address=10.10.10.0/30 gateway=40.40.40.1
  [admin@R4] > ip route add dst-address=192.168.20.0/24 gateway=40.40.40.1

  [admin@R4] > ip route add dst-address=20.20.20.0/30 gateway=40.40.40.1

  [admin@R4] > ip route add dst-address=192.168.30.0/24 gateway=40.40.40.1
  [admin@R4] > ip route pr

Konfigurasi mikrotik 5
  LOGIN

Mengganti nama router

  [admin@mikrotik] > system identity set name=R5

Interface

  [admin@R5] > interface set 0 name=to-lan

  [admin@R5] > interface set 1 name=to-R4

  [admin@R5] > interface set 2 name=to-R6
  [admin@R5] > interface pr

Ip address

  [admin@R5] > ip address add address=192.168.50.1/24 interface=to-lan

  [admin@R5] > ip address add address=50.50.50.2/30 interface=to-R4

  [admin@R5] > ip address add address=60.60.60.1/30 interface=to-R6
  [admin@R5] > ip address pr

Ip routing
  [admin@R5] > ip route add dst-address=192.168.40.0/24 gateway=50.50.50.1
  [admin@R5] > ip route add dst-address=40.40.40.0/30 gateway=50.50.50.1
  [admin@R5] > ip route add dst-address=192.168.10.0/24 gateway=50.50.50.1
  [admin@R5] > ip route add dst-address=10.10.10.0/30 gateway=50.50.50.1
  [admin@R5] > ip route add dst-address=192.168.20.0/24 gateway=60.60.60.2

  [admin@R5] > ip route add dst-address=30.30.30.0/30 gateway=60.60.60.2

  [admin@R5] > ip route add dst-address=192.168.30.0/24 gateway=60.60.60.2

  [admin@R5] > ip route add dst-address=20.20.20.0/30 gateway=60.60.60.2

  [admin@R5] > ip route add dst-address=192.168.60.0/24 gateway=60.60.60.2
  [admin@R5] > ip route pr

Konfigurasi mikrotik 6
  LOGIN

Mengganti nama router

  [admin@mikrotik] > system identity set name=R6

Memberi nama interface

  [admin@R6] > interface set 0 name=to-lan

  [admin@R6] > interface set 1 name=to-R3

  [admin@R6] > interface set 2 name=to-R5
  [admin@R6] > interface pr

Ip address

  [admin@R6] > ip address add address=192.168.60.1/24 interface=to-lan

  [admin@R6] > ip address add address=30.30.30..2/30 interface=to-R3

  [admin@R6] > ip address add address=60.60.60.2/30 interface=to-R5
  [admin@R6] > ip address pr

Ip routing
  [admin@R6] > ip route add dst-address=192.168.30.0/24 gateway=30.30.30.1
  [admin@R6] > ip route add dst-address=20.20.20.0/30 gateway=30.30.30.1
  [admin@R6] > ip route add dst-address=192.168.20.0/24 gateway=30.30.30.1

  [admin@R6] > ip route add dst-address=10.10.10.0/30 gateway=30.30.30.1

  [admin@R6] > ip route add dst-address=192.168.10.0/24 gateway=60.60.60.1
  [admin@R6] > ip route add dst-address=192.168.50.0/24 gateway=60.60.60.1

  [admin@R6] > ip route add dst-address=50.50.50.0/30 gateway=60.60.60.1
  [admin@R6] > ip route add dst-address=192.168.40.0/24 gateway=60.60.60.1

  [admin@R6] > ip route add dst-address=40.40.40.0/30 gateway=60.60.60.1
  [admin@R6] > ip route pr

V.  HASIL KERJA

       Cek apakah ke 6 router telah terhubung

R1 :Ping 192.168.20.1
       Ping 192.168.30.1

       Ping 192.168.40.1

       Ping 192.168.50.1
       Ping 192.168.60.1

R2 : Ping 192.168.10.1

         Ping 192.168.30.1

         Ping 192.168.40.1

         Ping 192.168.50.1

         Ping 192.168.60.1

R3 : Ping 192.168.10.1

         Ping 192.168.20.1

         Ping 192.168.40.1

         Ping 192.168.50.1

         Ping 192.168.60.1

R4 : Ping 192.168.10.1

         Ping 192.168.20.1

         Ping 192.168.30.1

         Ping 192.168.50.1

         Ping 192.168.60.1

R5 : Ping 192.168.10.1

         Ping 192.168.20.1

         Ping 192.168.30.1

         Ping 192.168.40.1

         Ping 192.168.60.1

R6 : Ping 192.168.10.1

         Ping 192.168.50.1

         Ping 192.168.30.1

         Ping 192.168.40.1

         Ping 192.168.50.1

VI. KESIMPULAN

        Konfigurasi selesai  saat ke 6 router terhubung seperti gambar di bawah ini

Description: Jobsheet8 ''Static Routing bagian 3''(Model 6 router) Rating: 4.5 Reviewer: Unknown - ItemReviewed: Jobsheet8 ''Static Routing bagian 3''(Model 6 router)

Jobsheet7 ''Static Routing bagian 2''(Model diamon)

Nama : Oryza Fathoni	''Static Routing  bagian 2''(Model diamon)	Tanggal : 20-11-2014
Kelas : XII TKJ 1		SK/KD :
No.Jobsheet : 7		Guru Produktif : Maman Hariana

I. TUJUAN
     Mengkonfigurasi Static routing Model diamon (bagian2)

II. PENDAHULUAN
      Disini saya akan menjelaskan cara konfigurasi Static routing model diamon

III. ALAT DAN BAHAN
        Laptop, Virtualbox, Mikrotik 5.20 & GNS3

IV. LANGKAH KERJA
       Creat topology
           Buat terlebih dahulu, lalu klik start yang berwarna hijau, maka 4 buah mikrotik yang
           sudah kita buat akan otomatis berjalan


Konfigurasi mikrotik 1
  LOGIN

Mengganti nama router
  [admin@mikrotik] > system identity set name=R1

Interface
  [admin@R1] > interface set 0 name=to-lan
  [admin@R1] > interface set 1 name=to-R2
  [admin@R1] > interface set 2 name=to-R3
  [admin@R1] > interface pr

Ip address
  [admin@R1] > ip address add address=192.168.10.1/24 interface=to-lan
  [admin@R1] > ip address add address=12.12.12.1/30 interface=to-R2
  [admin@R1] > ip address add address=13.13.13.1/30 interface=to-R3
  [admin@R1] > ip address pr

Ip routing
  [admin@R1] > ip route add dst-address=192.168.20.0/24 gateway=12.12.12.2
  [admin@R1] > ip route add dst-address=24.24.24.0/30 gateway=12.12.12.2
  [admin@R1] > ip route add dst-address=192.168.40.0/24 gateway=12.12.12.2
  [admin@R1] > ip route add dst-address=192.168.30.0/24 gateway=13.13.13.2
  [admin@R1] > ip route add dst-address=34.34.34.0/30 gateway=13.13.13.2
  [admin@R1] > ip route add dst-address=192.168.40.0/24 gateway=13.13.13.2
  [admin@R1] > ip route pr

Konfigurasi mikrotik 2
  LOGIN

Mengganti nama router
  [admin@mikrotik] > system identity set name=R2

Interface
  [admin@R2] > interface set 0 name=to-lan
  [admin@R2] > interface set 1 name=to-R1
  [admin@R2] > interface set 2 name=to-R4
  [admin@R2] > interface pr

Ip address
  [admin@R2] > ip address add address=192.168.20.1/24 interface=to-lan
  [admin@R2] > ip address add address=12.12.12.2/30 interface=to-R1
  [admin@R2] > ip address add address=24.24.24.1/30 interface=to-R4
  [admin@R2] > ip address pr

Ip routing
  [admin@R2] > ip route add dst-address=192.168.40.0/24 gateway=24.24.24.2
  [admin@R2] > ip route add dst-address=34.34.34.0/30 gateway=24.24.24.2
  [admin@R2] > ip route add dst-address=192.168.30.0/24 gateway=24.24.24.2
  [admin@R2] > ip route add dst-address=192.168.10.0/24 gateway=12.12.12.1
  [admin@R2] > ip route add dst-address=13.13.13.0/30 gateway=12.12.12.1
  [admin@R2] > ip route add dst-address=192.168.30.0/24 gateway=12.12.12.1
  [admin@R2] > ip route pr

Konfigurasi mikrotik 3
  LOGIN

Mengganti nama router
  [admin@mikrotik] > system identity set name=R3

Interface
  [admins@R3] > interface set 0 name=to-lan
  [admins@R3] > interface set 1 name=to-R4
  [admins@R3] > interface set 2 name=to-R1
  [admins@R3] > interface pr

Ip address
  [admin@R3] > ip address add address=192.168.30.1/24 inteface=to-lan
  [admin@R3] > ip address add address=34.34.34.1/30 inteface=to-R4
  [admin@R3] > ip address add address=13.13.13.2/30 inteface=to-R1
  [admin@R3] > ip address pr

Ip routing
  [admin@R3] > ip route add dst-address=192.168.40.0/24 gateway=34.34.34.2
  [admin@R3] > ip route add dst-address=24.24.24.0/30 gateway=34.34.34.2
  [admin@R3] > ip route add dst-address=192.168.20.0/24 gateway=34.34.34.2
  [admin@R3] > ip route add dst-address=192.168.10.0/24 gateway=13.13.13.1
  [admin@R3] > ip route add dst-address=12.12.12.0/30 gateway=13.13.13.1
  [admin@R3] > ip route add dst-address=192.168.20.0/24 gateway=13.13.13.1
  [admin@R3] > ip route pr

Konfigurasi Mikrotik 4
  LOGIN

Mengganti nama router
  [admin@mikrotik] > system identity set name=R4

Interface
  [admin@R4] > interface set 0 name=to-lan
  [admin@R4] > interface set 1 name=to-R3
  [admin@R4] > interface set 2 name=to-R2
  [admin@R4] > interface pr

Ip address
  [admin@R4] > ip address add address=192.168.40.1/24 inteface=to-lan
  [admin@R4] > ip address add address=34.34.34.2/30 inteface=to-R3
  [admin@R4] > ip address add address=24.24.24.2/30 inteface=to-R2
  [admin@R4] > ip address pr

Ip routing
  [admin@R4] > ip route add dst-address=192.168.30.0/24 gateway=34.34.34.1
  [admin@R4] > ip route add dst-address=13.13.13.0/30 gateway=34.34.34.1
  [admin@R4] > ip route add dst-address=192.168.10.0/24 gateway=34.34.34.1
  [admin@R4] > ip route add dst-address=192.168.20.0/24 gateway=24.24.24.1
  [admin@R4] > ip route add dst-address=12.12.12.0/30 gateway=24.24.24.1
  [admin@R4] > ip route add dst-address=192.168.10.0/24 gateway=24.24.24.1
  [admin@R4] > ip route pr

V. HASIL KERJA
      Cek sudah terhubung apa belum

R1 : ping 192.168.20.1
        ping 192.168.30.1
        ping 192.168.40.1

R2 : ping 192.168.10.1
        ping 192.168.30.1
        ping 192.168.40.1

R3 : ping 192.168.10.1
        ping 192.168.20.1
        ping 192.168.40.1

R4 : ping 192.168.10.1
        ping 192.168.20.1
        ping 192.168.30.1

VI. KESIMPULAN
         Konfigurasi selesai saat ke 4 mikrotik saling terhubung seperti gambar ini

Description: Jobsheet7 ''Static Routing bagian 2''(Model diamon) Rating: 4.5 Reviewer: Unknown - ItemReviewed: Jobsheet7 ''Static Routing bagian 2''(Model diamon)
